The newest generation of Radions radically redefines the simplicity, beauty, and power of the LED light. The best aquarium LED light in the world just got better.

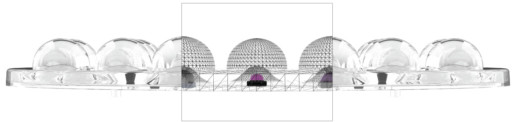

HEI OPTICS
HEMISPHERICAL EDGE ILLUMINATION
Generation 4 includes the most sophisticated lens design available. HEI lenses deliver the light uniformity and color mixing of halide T5 combo without sacrificing the power and efficiency of the LEDs.
Comparison
How impressive is the new HEI lens design? Just compare the previous generations of Radion lenses, which utilized the best optical technologies of the time. Observing the respective PAR distribution of the reflector and TIR lenses, it is immediately apparent that HEI Optics offer a significant improvement from the perspective of providing usable coverage.
QUIET ACTIVE COOLING
The G4 heat sink has been designed from the ground up to maximize surface area and allow for superior heat dispersion. Multiple channels provide unrestricted airflow. This effective heat management greatly reduces the need for active cooling, which decreases fan and airflow noise.
MORE RADION
MORE COLOR
The Radion G4 features a whole new LED cluster. The rebalancing of proven colors combined with the addition of warm white and violet takes color rendition for your corals to the next level. The reconfiguration of the clusters compliments the all-new HEI lenses to deliver balanced color mixing better than ever before.
MORE RADION
MORE COLOR
The Radion G4 features a whole new LED cluster. The rebalancing of proven colors combined with the addition of warm white and violet takes color rendition for your corals to the next level. The reconfiguration of the clusters compliments the all-new HEI lenses to deliver balanced color mixing better than ever before.
SPECIFICATIONS
Radion
XR15W G4 PRO
All the spectrum, half the intensity. Perfect for the majority of aquariums 24-30 inches wide and deep.
| Dimensions | |
|---|---|
| Length | 7in.(18cm) |
| Width | 7in.(18cm) |
| Height | 1.5in.(3.9cm) |
| Weight | 3.5lbs.(1587g) |
| Power Specifications | |
|---|---|
| Power Consumption | 95W |
| Universal Input Range | 100-240VAC, 50/60Hz |
| Peak Inrush Current | 1.3A |
| LEDs | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
|||||||||
Radion
XR30W G4
The industry standard for high output, comprehensive spectrum and unprecedented performance.
| Dimensions | |
|---|---|
| Length | 11.8in.(30cm) |
| Width | 7in.(18cm) |
| Height | 1.5in.(3.9cm) |
| Weight | 4.5lbs.(2041g) |
| Power Specifications | |
|---|---|
| Power Consumption | 150W |
| Universal Input Range | 100-240VAC, 50/60Hz |
| Peak Inrush Current | 2.0A |
| LEDs | |||||||
|---|---|---|---|---|---|---|---|
|
|||||||
Radion
XR30W G4 PRO
The industry standard for high output, comprehensive spectrum and unprecedented performance.
| Dimensions | |
|---|---|
| Length | 11.8in.(30cm) |
| Width | 7in.(18cm) |
| Height | 1.5in.(3.9cm) |
| Weight | 4.5lbs.(2041g) |
| Power Specifications | |
|---|---|
| Power Consumption | 190W |
| Universal Input Range | 100-240VAC, 50/60Hz |
| Peak Inrush Current | 4.0A |
| LEDs | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
|||||||||
Whether you choose a Blue or Pro, EcoTech aims to bring you the absolute best of what’s technologically possible. Both the Pro and Blue variants now include a spectrum range that reaches the 395nm range, pulling out more fluorescence from coral and fish that glow in the actinic range. Both fixtures also have a re-balancing of the color channel and LED (Diode) mix that augments the most flexible and balanced spectrums available in aquarium lighting. In the aquarium, this increases the ability to optimize for richer colors and even swing the hue of blue between crisp blue and subtle actinic.
WIDE
COLOR
WIDE
COLOR
Whether you choose a Blue or Pro, EcoTech aims to bring you the absolute best of what’s technologically possible. Both the Pro and Blue variants now include a spectrum range that reaches the 395nm range, pulling out more fluorescence from coral and fish that glow in the actinic range. Both fixtures also have a re-balancing of the color channel and LED (Diode) mix that augments the most flexible and balanced spectrums available in aquarium lighting. In the aquarium, this increases the ability to optimize for richer colors and even swing the hue of blue between crisp blue and subtle actinic.

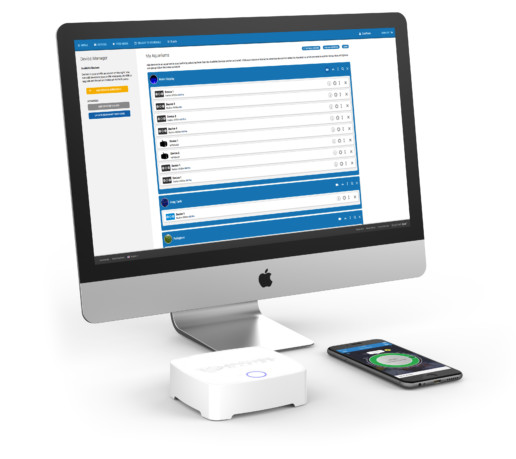

EcoSmart Live
Web-Based Control Platform
EcoSmart Live is the cloud-based equipment command center from EcoTech Marine. Control and customize your Radion LED lights and VorTech propeller pumps any time, anywhere. All you need is an Internet connection and a web browser (Chrome, Firefox or Safari). And because it’s all stored in the cloud, your connection is always secure and your data is backed up to save your valuable custom programming information.
By all means, let the power go to your head.
Control your equipment anywhere, any time.
No matter where life takes you, your tank is right there with you. EcoSmart Live is cloud-based, so you can access it through a web browser on any computer or tablet with an Internet connection.
Enjoy the peace of mind that your reef and its inhabitants are cared for and safe. (And you can say goodbye to installing software or staying on top of updates. New features are installed automatically.)
Customize the way your equipment operates.
How much control you take is up to you. For example, use one of the many predefined Radion lighting modes—or create your own special modes by controlling each color individually. You can even change your Radion light’s intensity during the day and adjust lunar phases at night.
Take EcoSmart Live to the next level.
The ReefLink is not necessary to access EcoSmart Live but you’ll love the flexibility and freedom it provides. By eliminating the need to connect your Radion by USB to a Mac or PC, ReefLink keeps your aquarium always connected, always accessible. With a ReefLink, you can use an iPhone, iPad and Android smart phones and tablets to control your Radion lights.
Mounting
Single Arm RMS
These two specialized kits are designed for XR15 and XR30 model Radions. Each kit contains everything needed to mount a Radion light on almost any standard or rimless tank.
Each kit contains multiple sliding rails and a rotatable x-bracket, allowing you to easily position your Radion precisely where you need it.
Mounting
Multi-Light RMS
The Multi-Light RMS offers a customizable multi-light mount solution for Radion XR30 and Radion XR15 lights. The Multi-Light RMS system features:
- Built-in cable management
- Compatibility with rimmed, rimless and euro-braced tanks
- Rigid yet lightweight construction
- Anodized aluminum finish
- Slide mounts for horizontal and rotational adjustment
- Optimal mounting for Radions at approximately 7 inches (18 cm) above the edge of the tank
Radion® Diffuser
Model available for XR15 and XR30 Radion® Lights
FEATURES
- Engineered diffuser material for improved color mixing and caustics
- Quick and easy installation
- Magnetically attached lens for easy removal and cleaning
- Only a 25% reduction in PAR output
- Compatible with all Radion versions
FEATURES
- Engineered diffuser material for improved color mixing and caustics
- Quick and easy installation
- Magnetically attached lens for easy removal and cleaning
- Only a 25% reduction in PAR output
- Compatible with all Radion versions
HOW IT WORKS
The Radion® diffuser utilizes an engineered diffuser material with an optimized airspace, the result is enhanced color mixing and more uniform caustics. Working with the existing optics equipped on the Radion® fixtures, a diffuser offers a more pleasing light appearance with only a marginal reduction in PAR.
HOW IT WORKS
The Radion® diffuser utilizes an engineered diffuser material with an optimized airspace, the result is enhanced color mixing and more uniform caustics. Working with the existing optics equipped on the Radion® fixtures, a diffuser offers a more pleasing light appearance with only a marginal reduction in PAR.
RADION
XR15FW PRO G2
All of the capability of the Radion with a spectrum specifically tailored for freshwater.
Radion FW Features
• Advanced HEI Optics
• Higher Uniformity Over Larger Area
• Wireless Communication with Other Ecotech Products
• Quiet Running Active Cooling Technology
• 23 Energy-ecient LEDs
• 24hr Programmable Output with Easy Import & Export Functionality
• Web Based Programming with EcoSmart Live

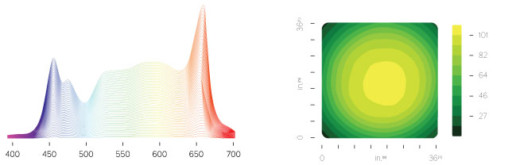

FW Spectrum and PAR
PAR measured at a distance of 24” below the light.
Radion
XR15FW PRO G2 Specifications
| Dimensions | |
|---|---|
| Length | 7in.(18cm) |
| Width | 7in.(18cm) |
| Height | 1.5in.(3.9cm) |
| Weight | 3.5lbs.(1587g) |
| Power Specifications | |
|---|---|
| Power Consumption | 95W |
| Universal Input Range | 100-240VAC, 1.5A; |
| LEDs | ||||||
|---|---|---|---|---|---|---|
|
||||||
